In previous versions of ArtiCAD, to change the handles for for all the units in your design you had to select the handle for every relevant door type under "This Design" - "Door Type", "Customise Door". Version 17 introduces a new option that should speed up changing handles for your design.

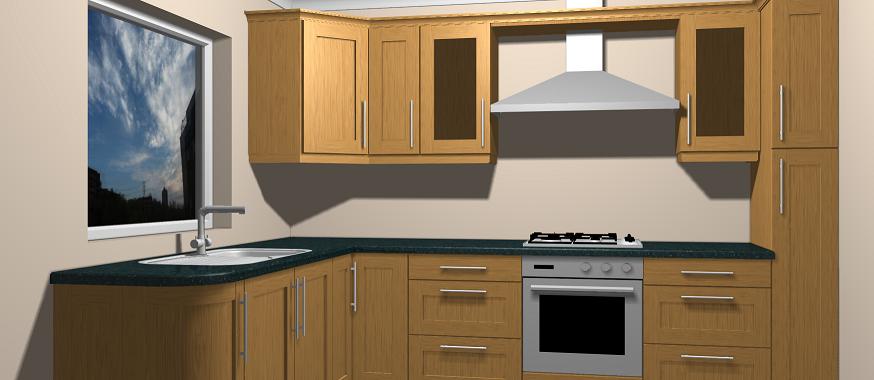

Using the above plan as an example, we will change all the handles from the current bar handle to an s-shaped handle.

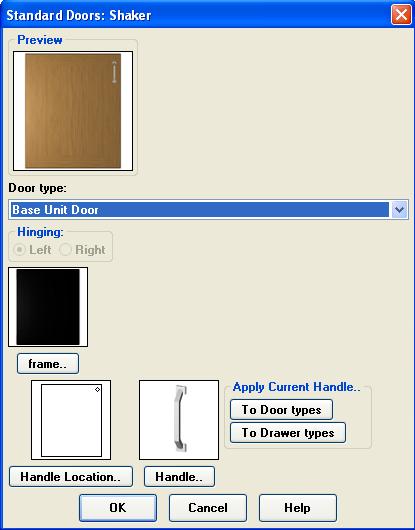

Click "This Design" - "Door Type", then "Customise Door".

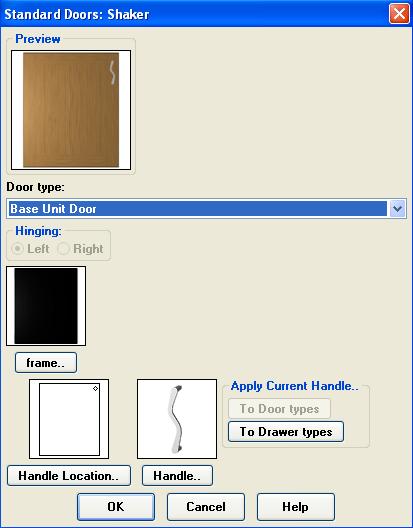

Select "Base unit door" as the door type. Select the handle you wish to go on all the doors (base unit doors, wall unit doors, glass wall unit doors etc) in your design. Click "Apply handle to Door types".
Note that the "Apply handle to Door types" button is now greyed out - this indicates the selected handle is applied to all the door types in your design.
Change the door type to "Base unit drawer". Select the handle you wish to go on all the drawers (base unit drawers, pan drawers, glass pan drawers etc) in your design. Click "Apply handle to Drawer types".
Note that the "Apply handle to Door types" button is now greyed out - this indicates the selected handle is applied to all the drawer types in your design.
